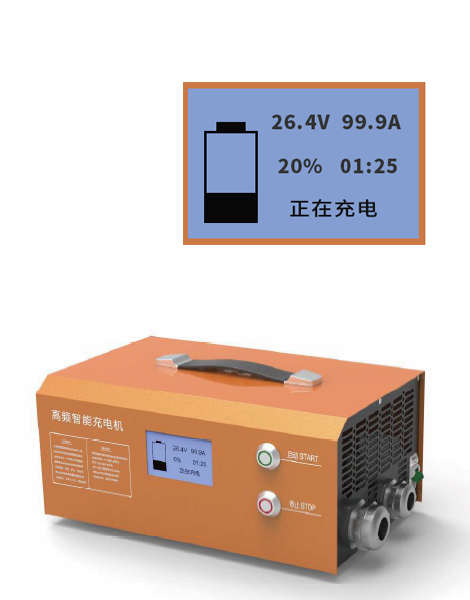

此系列充電機采用高效LLC電路,MCU智能控制方式,液晶屏顯示;適用于鉛酸加液電池、免維護鉛酸電池、鋰電池等;可用于電動輕卡、電動觀光車、巡邏警車、餐車、堆高車、叉車等電池組循環充電。

技術參數(Technical parameters):
? 交流輸入電壓范圍: 90-260VAC;45-65Hz(Ac input voltage range)
? 功率因數:≥0.98
(PFC)
? 交流輸入最大電流: 16A@220VAC
(AC max input current)
? 最高效率: 93.0% (滿載時)
(Max Efficiency)
? 噪聲:≤65dB
(Noise)
? 防護等級: IP20
(Protection grade)
? 重量: 13.8kg士0.3kg
(Net weight)
? 工作溫度: -30C-+55C
(Working temperature)
? 存放溫度: -40C-+95C
(Storage temperature)
? 可選配CAN總線控制; 液晶顯示,12V/24V輔 助電源選配為BMS供電充電
鎖止(充電過程通過繼電器可鎖止車輛動力系統)
CAN bus control, LCD display and 12V/24V auxiliary power supply to power
BMS for option; Charging lock function (The vehicle power system can be
locked through the relay during charging proces).
? 輸入過流保護 Input overcurrent protection
? 輸出反接保護 Output reverse connection protection
? 輸入過壓保護 Input overvoltge protection
? 輸出短路保護 Output short circuit protection
? 輸入欠壓保護 Input undervoltage protection
? 輸出空載保護 Output no-load protection
? 充電機過溫保護 Over temperature protection
? 輸出過壓保護 Output overvoltage protection
? 充滿自動關機 Fully charge automatic shutdown
|
規格型號 Item |
電池組額電壓 Battery Rated voltage |
最大輸出電流 Max output current |
|
PBC310-4850 |
48V |
50A |
|
PBC310-6050 |
60V |
50A |
|
PBC310-7240 |
72V |
40A |
|
PBC310-12025 |
120V |
25A |
|
PBC310-36008 |
360V |
10A |
